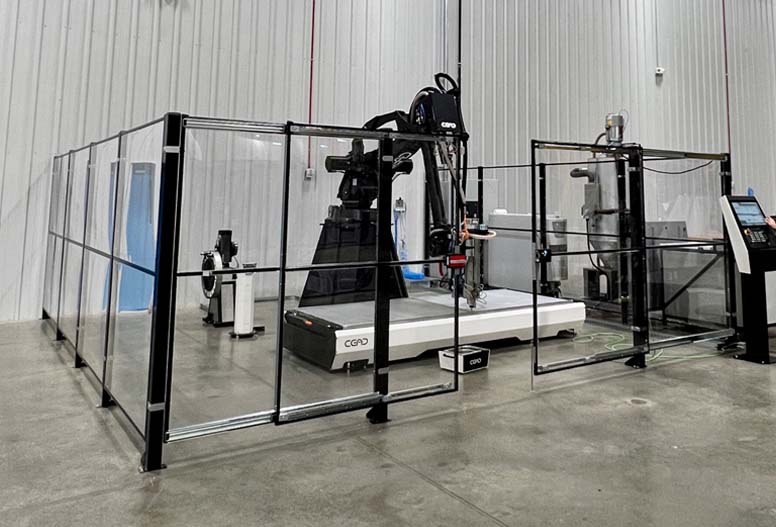

Additive Manufacturing Print Services

  • Large 9.8’ x 4.6’ x 6.5’ (3 x 1.4 x 2m) build volume
  • Additive / Subtractive build
  • High accuracy printing
  • Multi-axis printing and machining capability
Additive

Print Services

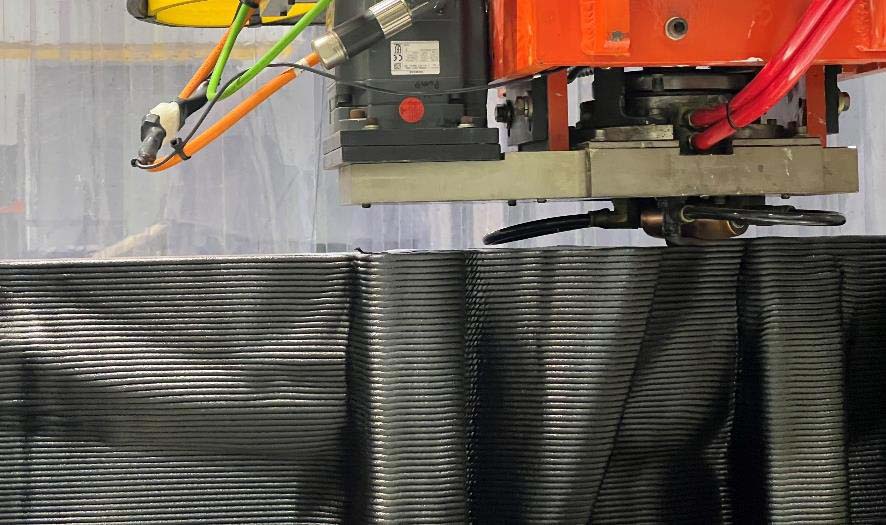

O° Degree Printing

O° Degree Printing

Layers are printed in a horizontal plane, growing the tool vertically

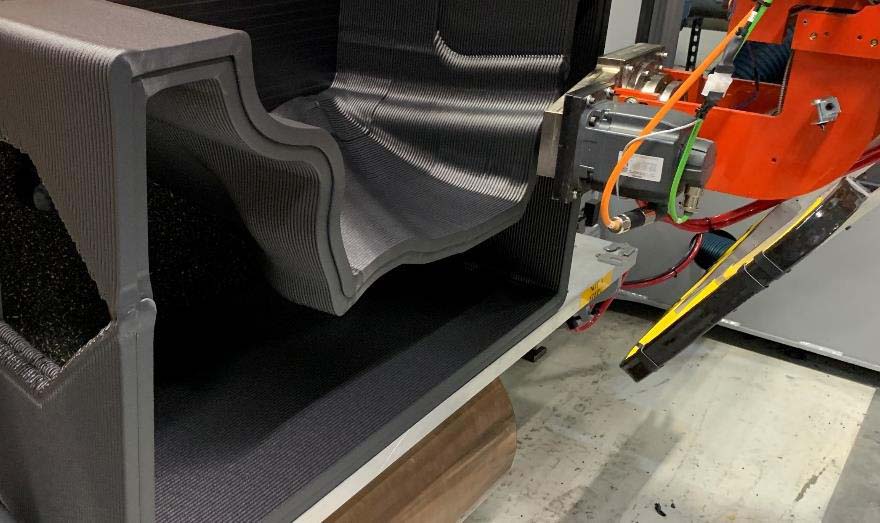

9O° Degree Printing

9O° Degree Printing

Layers are printed in a vertical plane, growing the tool horizontally

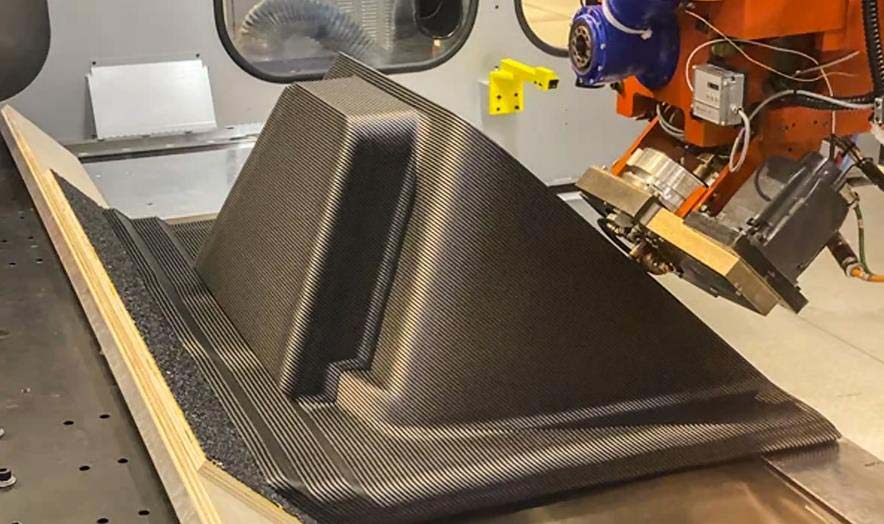

45° Degree Printing

45° Degree Printing

Layers are printed in an angled plane, growing the tool along the bed at an angle

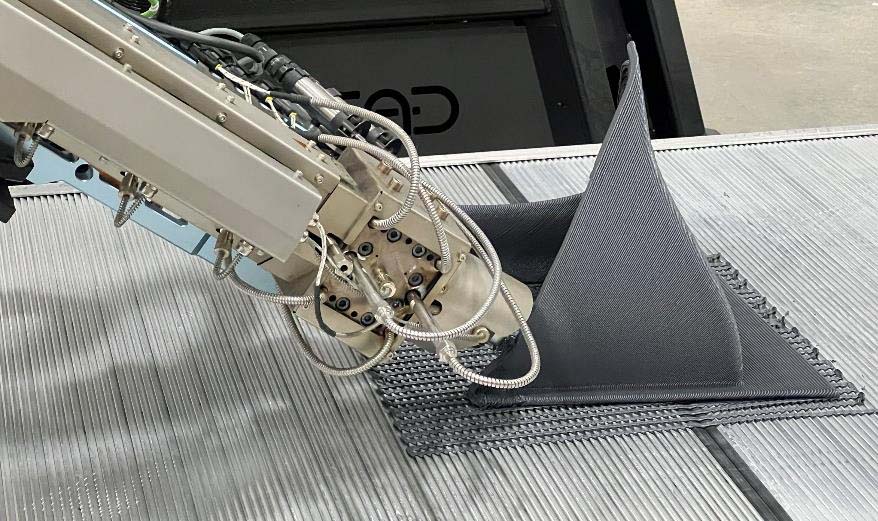

Multi-axis Printing

Multi-axis Printing

For complex geometries

Near Net Shape Printing and Precision Machining

Printed

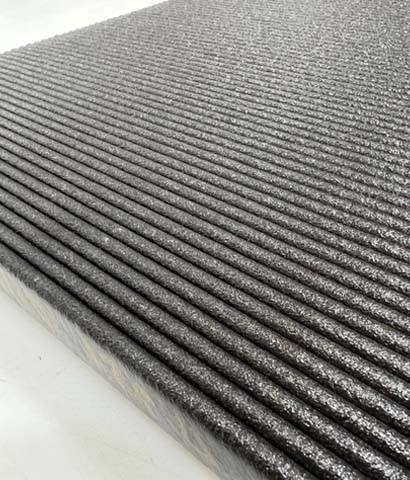

As Printed Surface

Print layers visible on as printed panel, section cut showing high density void free panel.

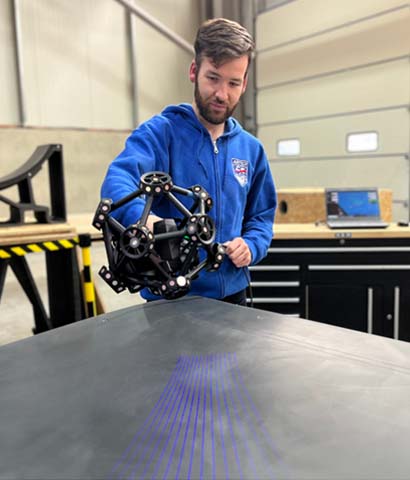

Finished tools

Tools can be supplied machined to profile and finished to surface specification then Laser scanned

finished-tools
Tools

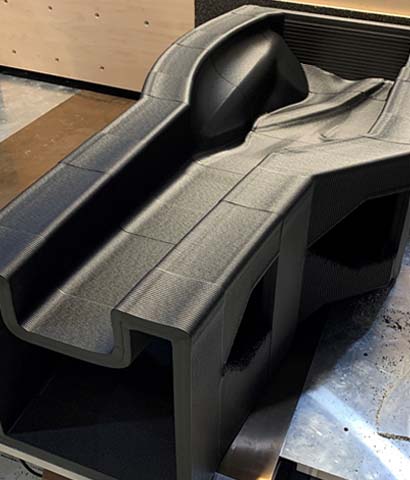

As Printed Tools

As printed tools can be supplied on shorter lead times to toolmakers and customers for in-house completion, with the option to provide print-only tooling for customer CNC finishing.

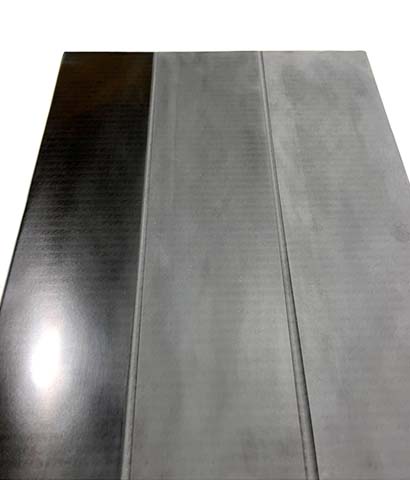

Machined surface quality

A Class (Ra 16 micro-inch) surface can be achieved on finished molds. Typical mold surface would be finished to Ra 32 microinch.

machined-surface
